Heagstat H701 Thermostat Review: Simple 1H/1C Control

The Heagstat H701 is a non-programmable wall thermostat for compatible conventional single-stage 1 heat/1 cool home HVAC systems. Its large white-backlit display, direct controls, battery option, and adjustable swing settings make it practical for uncomplicated daily climate control. The central limitation is strict compatibility: it is not for heat pumps, multi-stage, or line-voltage systems.
Expert reviewed
82
Overall score
Data-driven scoring Expert reviewed Updated analysis

Why we ranked it highly

The Heagstat H701 is a basic wired home thermostat intended for conventional single-stage heating and cooling, including compatible forced-air gas, oil, and electric furnace systems. Rather than adding schedules, app controls, or complex automation, it focuses on visible temperature information and direct adjustment through its backlit LCD and button controls. The stated room-temperature display range is 41°F to 95°F, while the control range is 44°F to 90°F. It can run on 24VAC hardwiring or two AAA batteries, which may simplify replacement work in older compatible homes where a C-wire is not available. Separate heat and cool swing adjustment and selectable compressor-delay protection add useful control without changing its basic character. Buyers must verify their system type and wiring carefully, as the H701 excludes heat pumps, multi-stage equipment, line-voltage heating, and several other HVAC formats.
90-day review Expert reviewed User feedback Data scoring

Key specs

Features & Specs

Additional Features
Separate Heating and Cooling Swing (Cycle Rate), Compressor Delay Protection
Specific Uses For Product
Single-Stage Heating (Gas/Oil/Electric Furnace), Ventilation, and Air Conditioning
Temperature Control Type
1 Heating and 1 Cooling
Connectivity Technology
Wired
Power Source
24VAC hardwiring or 2 AAA batteries (not included)
Voltage
24 Volts
Display Type
LCD
Screen Size
3 Inches
Control Type
Button Control
Control Method
Touch
Connectivity Protocol
BACnet MS/TP
Mounting Type
Wall Mount
Backlight
Yes

Measurements

Item Dimensions D x W x H

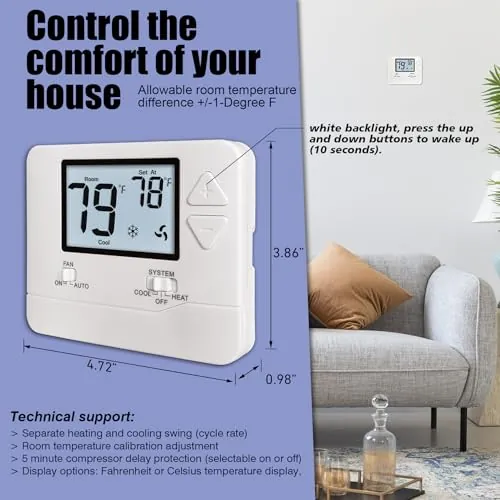

0.98"D x 4.72"W x 3.86"H
Item Weight
0.4 Pounds

Materials & Care

Material Type
Plastic
Finish Types
Matte

Item details

Brand Name
Heagstat
Model Name
Single-Stage Thermostat
Included Components
thermostat, Two screws and anchors, Installation manual, Cable label
Model Number
H701
UPC
602430103056
Manufacturer
Heagstat
Manufacturer Part Number
H701
Unit Count
1.0 Count

Style

Color
White Backlight
Shape
Rectangular
Product Style
Modern

User guide

Specification Met
energy

Scores breakdown

87 /100

Performance

73 /100

Features

83 /100

Safety

86 /100

Comfort

88 /100

Ease of use

90 /100

Space efficiency

80 /100

Noise

84 /100

Design

Strengths

  • Large white-backlit LCD and prominent temperature numbers improve readability.
  • Simple non-programmable controls suit set-and-forget daily heating and cooling.
  • Supports compatible conventional single-stage 1H/1C systems without a C-wire in many installations.

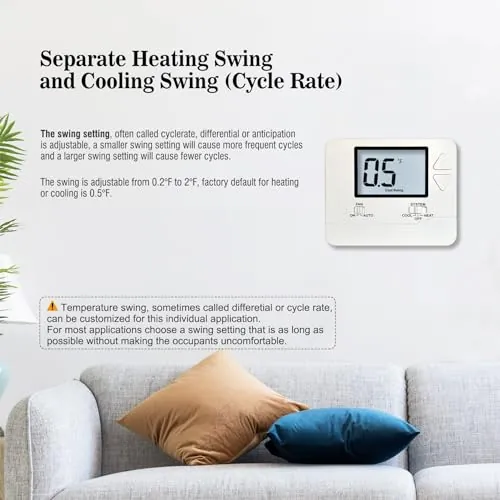

  • Separate heat and cool swing adjustment offers more control over cycling behaviour.
  • Selectable five-minute compressor-delay protection is included.
  • Battery or 24VAC power options add flexibility for retrofit installations.
  • Strong buyer feedback and a low purchase price support its value position.

Limitations

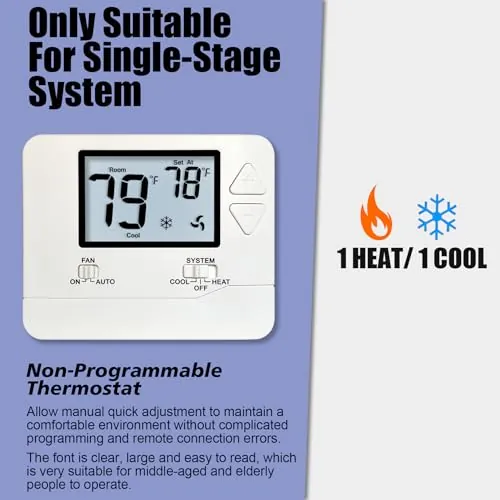

  • Works only with compatible conventional single-stage 1 heat/1 cool systems.
  • It is not compatible with heat pumps, multi-stage systems, line-voltage baseboard heating, mini-splits, PTAC units, or several other system types.
  • There is no scheduling, app control, remote access, or smart-home automation.
  • Some buyers report that older or unusual wiring arrangements can require additional research.
  • One review described a heating-connection failure despite cooling working correctly.

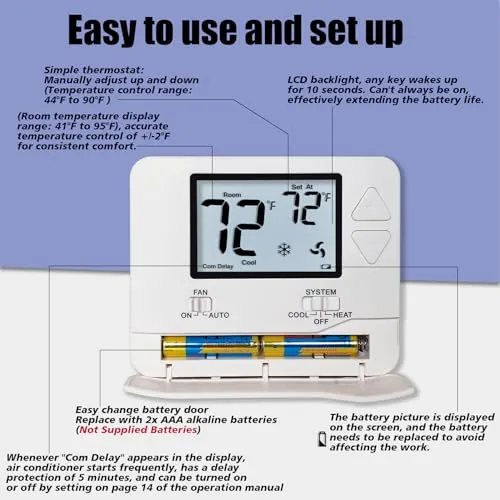

  • AAA batteries are supported but are not included.
  • A wall/back plate is not listed among the included components.

Ideal user profiles

  • Homeowners replacing a compatible conventional single-stage thermostat.
  • Buyers who prefer direct buttons over scheduling and app-based controls.
  • Older adults or anyone who benefits from a large, backlit temperature display.
  • Households retrofitting an older system where a C-wire may not be available.
  • Budget-focused shoppers who want adjustable temperature swing settings.

Use cases

  • Replacing a malfunctioning basic or programmable thermostat in a compatible home HVAC setup.
  • Managing conventional forced-air gas, oil, or electric furnace heating.
  • Controlling a compatible single-stage central air-conditioning system.
  • Fitting a clear, straightforward thermostat in a home used by people who value large text.
  • Updating an older compatible thermostat without adding a C-wire in many standard setups.
  • Reducing unwanted cycling through heat and cool swing adjustment where appropriate.

Fit and positioning

Who this works for

Category positioning

This is a climate-control product and a conventional home HVAC replacement thermostat, not a smart-home controller. Its household role is to provide straightforward manual control of a compatible furnace and central air-conditioning setup. The H701 sits at the simple, low-cost end of the thermostat category: it prioritizes readability, basic temperature adjustment, and retrofit-friendly power options over scheduling, remote access, and connected-home features.

Best for

The H701 is best for households with a verified conventional 1H/1C single-stage system that want uncomplicated temperature control. It is particularly well suited to people who value large, bright digits, including older users and those replacing a hard-to-read thermostat. It also makes sense for buyers who do not want programming or smart-home functions but do want adjustable swing settings and the option to operate without a C-wire in many compatible installations.

Not best for

This model is not a suitable choice for heat pumps, multi-stage HVAC equipment, 120–240V baseboard systems, mini-splits, PTAC units, or the other excluded systems listed by the manufacturer. It is also a poor fit for households wanting schedules, phone control, energy-use insights, voice-assistant support, or smart routines. While many buyers found installation simple, older or atypical wiring can need closer research, and one review reported a heating connection problem.

Home use

For everyday home use, the H701 is built around a simple routine: check the large display, select heating or cooling, and adjust the target temperature directly. Its uncluttered approach can be more convenient than a programmable model for households that maintain similar settings day to day. Battery power may also be useful for compatible replacement installations where wiring options are limited.

Performance analysis

How it performs in practice

Each scoring dimension is separated into a compact card so the strengths and tradeoffs are easier to compare without reading one long block.

Performance analysis

On its intended task, the H701 appears to perform strongly when paired with the correct conventional single-stage HVAC system. The listing specifies control accuracy within plus or minus 1°F, and review feedback commonly says that heating and cooling operation is straightforward and effective. Adjustable heat and cool swing settings are a notable practical advantage for users concerned about cycling behaviour. Performance is conditional on correct system matching, however: one buyer reported that cooling worked while heating did not, and the product information explicitly rules out many HVAC types.

Feature analysis

The feature set is focused rather than extensive. Core functions include a large white-backlit LCD, manual heat and cool control, low-battery indication, separate heating and cooling swing adjustment, and selectable five-minute compressor-delay protection. It can be powered by 24VAC or two AAA batteries and includes coded terminals for RH, RC, G, Y, W, and C. There are no schedules, app features, remote controls, or smart-home functions, so its features suit basic climate control rather than automation.

Safety

The primary safety consideration is correct electrical and HVAC compatibility. This thermostat is designed for specified 24VAC conventional single-stage systems and is explicitly not for 120–240V line-voltage equipment, including electric baseboards. Using it with an excluded system could create an unsuitable installation. For compatible cooling systems, the selectable five-minute compressor-delay protection is a relevant safeguard. Buyers should switch the gas/electric setting appropriately, follow the wiring guidance, and seek qualified help if system type or wire functions are uncertain.

Comfort

Comfort is supported by clear temperature visibility, direct adjustment, and stated precise control for compatible systems. The ability to set heating and cooling swing separately gives users some scope to balance temperature stability and cycling preferences. Reviewers commonly describe the unit as easy to use and effective at maintaining a comfortable setting. Since it is non-programmable, users who want automatic overnight or away-temperature changes will need to make those adjustments manually.

How it compares

Within the thermostat category, the H701 is stronger as a simple replacement control than as a feature-rich climate-management device. It compares favorably on display readability, direct operation, compact size, basic temperature control, and value for compatible 1H/1C systems. Adjustable swing settings and compressor-delay protection add more flexibility than the most minimal manual models. In contrast, it is behind programmable and smart thermostats for schedules, remote adjustment, usage insights, automation, and broader system support. Its narrow HVAC compatibility is the most important comparison point: system matching matters more here than cosmetic preference.

Ranking summary

The Heagstat H701 ranks well among basic non-programmable thermostats because it combines clear usability with a low entry price. Its strongest practical advantages are the highly readable white-backlit display, direct controls, adjustable heat and cool swing, battery option, and generally favorable buyer feedback. It is especially compelling as a replacement for a compatible conventional single-stage system where a smart thermostat would be unnecessary or difficult to power. Its ranking is constrained by narrow compatibility, the complete absence of scheduling and connected features, and isolated reports of wiring or heating-connection trouble. It is a focused choice rather than an all-system solution.

Buying advice

Consider the H701 if you have confirmed a conventional, non-heat-pump single-stage system with up to one heating and one cooling stage, and you want a large readable display with manual controls. It is particularly sensible for replacing an older thermostat where a C-wire may be unavailable, provided the wiring matches the supplied guidance. Avoid it if your home has a heat pump, multi-stage equipment, line-voltage heating, mini-split, PTAC, or a need for schedules and smart-home control. Before buying, identify each existing wire, check the gas/electric configuration, and review the compatibility exclusions carefully.
82
Overall score

Final verdict

The Heagstat H701 is a strong basic option in the non-programmable thermostat category for the right HVAC setup. Its main strengths are its large white-backlit display, uncomplicated operation, adjustable swing settings, flexible power options, and value-led price. Buyer feedback is broadly positive, particularly around visibility and installation simplicity. Its main limitation is not build complexity but system restriction: it only fits compatible conventional 1H/1C setups and offers no scheduling, app, or smart-home features. Confirming wiring and equipment type before purchase is essential. For a verified compatible home that needs straightforward manual control, it is a practical choice.
Back to review

Key topics

Heagstat H701 thermostat, Heagstat non-programmable thermostat review, single-stage thermostat, 1 heat 1 cool thermostat, large display thermostat, battery powered home thermostat, conventional HVAC thermostat, non-smart thermostat

Frequently asked questions

Is the Heagstat H701 thermostat compatible with heat pumps?
No. The supplied compatibility information states that the H701 is for conventional single-stage 1 heat/1 cool systems and does not work with heat-pump systems. Buyers should confirm the HVAC equipment type and wiring before ordering, rather than relying only on the appearance of their existing thermostat.
Does the Heagstat H701 need a C-wire?

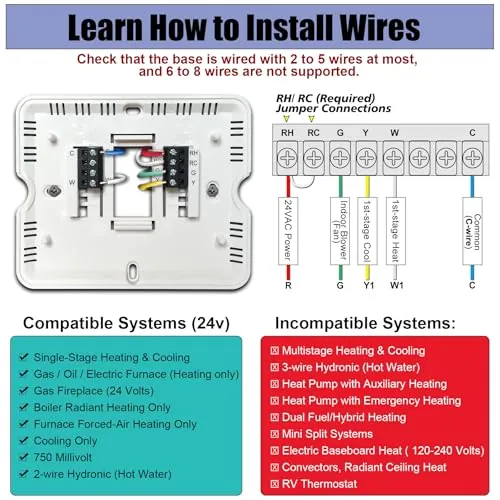

The thermostat supports 24VAC hardwiring or two AAA batteries, and the product information says a common wire is not required for most standard compatible systems. Batteries are not included. Wiring requirements can still vary by HVAC setup, so checking the supplied wiring diagrams remains important.
Is the Heagstat H701 easy to read?
Readability is one of its clearest strengths. It has a large white-backlit LCD, a stated 4.5-square-inch display area, and prominent numbers. Reviewers repeatedly describe the screen as bright, clear, and visible from across a room, including buyers who need a more accessible display.
Can the Heagstat H701 be programmed on a schedule?
No. This is a non-programmable thermostat designed for direct manual temperature adjustment rather than daily or weekly schedules. That simplicity suits buyers who want a fixed setpoint, but it will not suit households looking for timed setbacks, remote changes, or automated routines.
What systems will not work with the Heagstat H701?

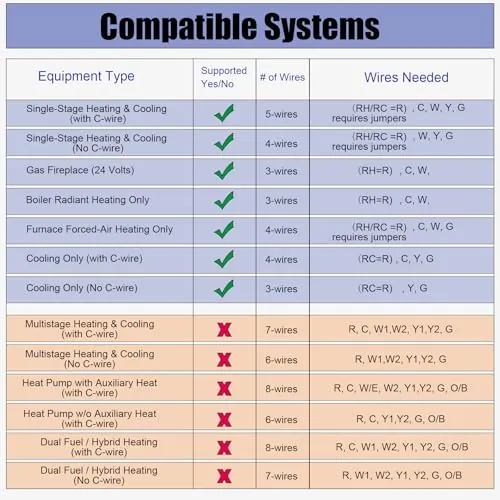

It is listed as incompatible with multi-stage systems, heat pumps, 120–240V line-voltage systems, electric baseboard heat, mini-split heat-pump air conditioners, PTAC units, three-wire hydronic heating, dual-fuel systems, and specified RV air conditioners. Confirming compatibility before installation is essential.
How accurate is the Heagstat H701 thermostat?
The product listing states temperature control accuracy of plus or minus 1°F and offers adjustable heat and cool swing settings from 0.2°F to 2°F. Several reviews describe accurate operation, including one comparison with an indoor thermometer, though results can depend on installation and system compatibility.
Is the Heagstat H701 good value?
For a compatible single-stage system, the low listed price, large backlit display, battery option, swing adjustment, and compressor-delay setting make the H701 a strong value-focused basic thermostat. Its value falls for buyers who need scheduling, smart controls, or compatibility with more complex HVAC equipment.
